Printing Product Portfolio

The classic sturdy and lightweight metal option

Technical Data Sheet - USA

The re-tensionable frame for demanding applications

Technical Data Sheet - USA

Easy and reliable re-tensionable frames

Technical Data Sheet - USA

For the textile printer who needs to focus on stencil production and printing, SAATI Stretched Screens are produced with the same high quality SAATI mesh that you are already used to.

Technical Data Sheet - USA

Blue two component polyurethane adhesive with a 30-50 minute mixed pot life to be mixed in small quantities as required, very high initial adhesion

Technical Data Sheet - EMEA+USA

Two component polyurethane adhesive with a 48 hour mixed pot life for maximum workflow flexibility, good initial adhesion

Technical Data Sheet - EMEA+USA

Red two component polyurethane adhesive with a 30-50 minute mixed pot life with maximum initial adhesion. Cures much more quickly when sealed with SAATI Finish WU-2

Technical Data Sheet - EMEA+USA

Red two component polyurethane adhesive with a 30-50 minute mixed pot life with maximum initial adhesion

Technical Data Sheet - EMEA+USA

Red two component polyurethane adhesive with a flexible 4-5 hour mixed pot life and good initial adhesion

Technical Data Sheet - EMEA+USA

Apply Direct Prep 1 to newly stretched screens in order to clean the mesh and create a uniform surface for more consistent coating, while roughening the mesh surface in order to enhance the grip of emulsion and films.

Technical Data Sheet - USA+EMEA

Two component polyurethane adhesive with a 48 hour mixed pot life for maximum workflow flexibility, good initial adhesion

Technical Data Sheet - USA+EMEA

Red two component polyurethane adhesive with a 30-50 minute mixed pot life with maximum initial adhesion. Cures much more quickly when sealed with SAATI Finish WU-2

Technical Data Sheet - EMEA+USA

No / Low Foam concentrated degreaser & wetting agent formulated for use in automated screen cleaning equipment

Technical Data Sheet - EMEA

Technical Data Sheet - USA

Direct Prep 4 is a powerful cleaning agent that can be used on new or recycled mesh, or even hard surfaces in the screen department

Technical Data Sheet - Global

Fast exposing solvent and water-resistant capillary film. Exposes three times faster than comparable diazo film. Long shelf life. Easy to reclaim. Can be used with solvent based, UV-Cured, plastisol and water-based inks.

Technical Data Sheet - Global

SAATI DCF Series Capillary Film is designed for use with all solvent based inks. It varies in color depending on micron thickness and comes in six different thicknesses.

Technical Data Sheet - Global

Developed to meet the needs of the industrial printing market, specifically manufacturers of touch screen displays and solar cells, as well as membrane switches and graphic overlays. Provides wide exposure latitude with the sharpest edge definition, and boasts exceptional resistance to the aggressive solvents used during on-press cleaning.

Technical Data Sheet - Global

• Faster exposing blue/green dual-cure emulsion for CtS graphics stencil making
• Maximum resolution and good edge definition for industrial printing applications
• Suitable for use with both synthetic and stainless steel wire mesh
• Excellent resistance to solvent-based, UV-Cured, two-part, and plastisol inks
• Fast exposure (for a dual-cure) with wide exposure latitude and easy developing
• Very good solvent resistance and easy reclaiming
• Designed specifically for use with SAATI LTS laser direct exposure system to maximize stencil quality

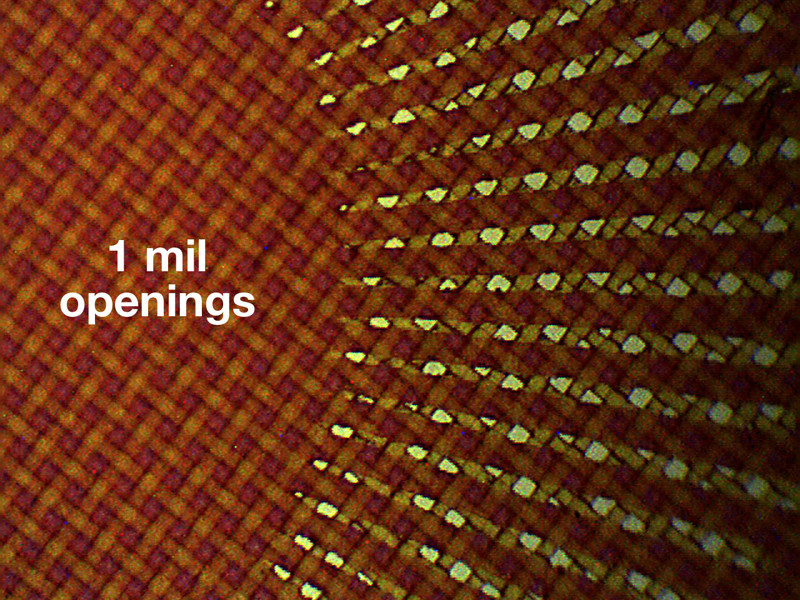

Grafic PS Red TDS - Global

• Blue pure photopolymer emulsion for general graphics printing
• Resistant to UV-cured, plastisol and solvent-based ink. Water resistant when post-exposed
• High solids content and medium viscosity for excellent print definition on any mesh
• Exposes 4 times faster than diazo or dualcure emulsions with no mixing required
• Very resistant to solvent and very easy to reclaim
• Make dual-cure quality stencils with 1-part emulsion, and no mixing required, long shelf life & no diazo stains

Grafic PS TDS - USA+EMEA

Thermostat drying chamber compatible with most rolling screen racks

SAATI Elite Dryer TDS - USA

Space saving portable screen storage

SAATI Pro Drying Racks

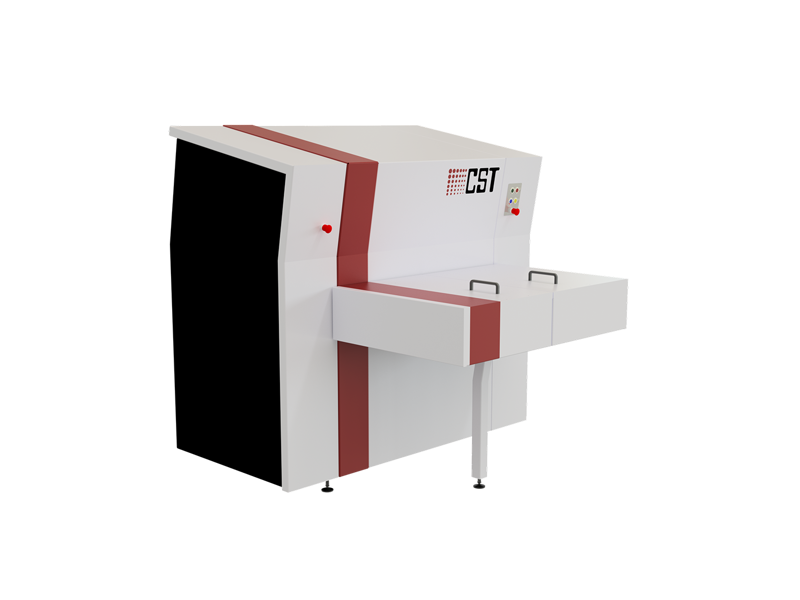

The CST DLE Label is always supplied horizontally in one piece - plug and play for reduced installation time.

The system is optimized to make stencils for printing labels on hollow glass, plastic and metal.

The system is available with different maximum image sizes up to 1.2 x 1.0m with a toggle between 2400 and 2540 DPI.

CST Brochure

The DLE is supplied as a vertical version and is customized to meet individual requirements. It was one of CST's first models to be sold and has been further developed over the years - this is a flagship model.

CST manufactures systems according to customer requirements in sizes from 2.0 x 2.0m up to 8.0 x 4.0m, or even larger upon special request. The resolutions range from 1000 to 2540 DPI.

Screens can be loaded from the front or sides, various screen weights can be used, and the loading/offloading can be automated.

CST Brochure

This vertical one-piece system is considered “plug-in and play,” with a reduced installation time. The standard configurations are for screens 1 x 1m to 1.5m x 1.5m, with larger systems on special request.

The resolutions vary between 1,000dpi and 2,540dpi.

This system is also often ordered as a side-loading semi-automatic version or as a complete in-line version. Otherwise it loads from the front or sides, saving space.

CST Brochure

For the electronics printer that must work with high definition art files but wants to avoid the costs and production delays that come with film positives, CST offers the CST DLE Smart.

This machine pairs a 48W long-lasting laser light source with 1920 x 1080 DMD chip technology and autofocus function to accurately image & expose high definition images with input resolution up to 12,700 DPI - without film positives.

CST Brochure

The DLE ECO combines economy and performance at its best. Thanks to its innovative design, this horizontal machine is of interest to many customers who require a resolution of 1,000 dpi.

The screen can be loaded from any side and then clamped manually. The CST clamping device makes positioning easy and ensures that the starting point is the same for all screens, which offers a considerable time savings during press setup.

This system is always offered as a stand-alone.

CST Brochure

• Fast drying, waterproof polyester film for creating positives
• Compatible with any inkjet printer and works with standard ink cartridges
• Dimensionally stable
• Fast drying
• Very good durability
• Great registration accuracy

Technical Data Sheet - Global

• Fast drying, waterproof polyester film for creating positives
• Compatible with any inkjet printer and works with standard ink cartridges
• Dimensionally stable
• Fast drying
• Very good durability
• Great registration accuracy

Technical Data Sheet - EMEA

• Fast drying, waterproof polyester film for creating positives
• Compatible with any inkjet printer and works with standard ink cartridges
• Dimensionally stable
• Fast drying
• Very good durability
• Great registration accuracy

Technical Data Sheet - EMEA

• Fast drying, waterproof polyester film for creating positives
• Compatible with any inkjet printer and works with standard ink cartridges
• Dimensionally stable
• Fast drying
• Very good durability
• Great registration accuracy

Technical Data Sheet - EMEA

• Fast drying, waterproof polyester film for creating positives
• Compatible with any inkjet printer and works with standard ink cartridges
• Dimensionally stable
• Fast drying
• Very good durability
• Great registration accuracy

Technical Data Sheet - EMEA

High quality washout booth for both developing and reclaiming screen.

SAATI Pro Washout Booth TDS - USA

Premium quality washout booth for both developing and reclaiming screen.

SAATI Elite Washout Booth TDS - USA

High efficiency pneumatic pump system that practically eliminates refill downtime and lessens the hand fatigue stemming from manual spray bottles.

Drum Dispensing Unit TDS - USA

• Highly chemically resistant brush surface for the application or spreading of every type of screen printing chemical before and after printing
• White plastic handle is fused to the brush without any adhesives
• Fusion of handle to brush means that no chemical can debond the pad from the handle
• Heavy duty handle encourages a motion that doesn’t put stress on the wrist joint
• High chemical resistance makes the scrub pad compatible with even the harshest haze/ghost removers

Screen Scrubber Pads TDS - USA

Yellow LED Safelights permit you to brightly illuminate the areas where you store, transport and prepare screens for exposure. With a light “airlock” it’s possible to work comfortably without compromising stencil quality. SAATI Yellow LED Safelights are the preferred solution

Yellow LED Safelight Bulbs TDS - Global

Safe light goggles are an essential tool for every screen printing business. Safe light goggles ignore the wavelengths that are safe for unexposed stencil material and only allow the wearer to see in the wavelengths that do affect them. Instantly verify the presence or absence of unsafe light wavelengths in the areas where you store, transport and prepare to expose unexposed screens, so you can take decisive action with Safe lighting as needed.

Safelight Goggles TDS - Global

Accurately count the number of threads per inch within +/-2 in mesh counts ranging from 22-528 TPI.

This is accomplished by placing one of the 2 included films (22-276 TPI and 274-528 TPI) onto your fabric and rotating the film until the moire pattern appears next to the mesh count.

Mesh Counter TDS - Global

Confirm the tension of your mesh during stretching, and at all subsequent stages to avoid printing with under-tensioned screens

Digital Tension Meter TDS - Global

Use gauge by laying it directly on the screen or film. A moiré pattern appears on the tool at the angle it sees.

Angle Determiner TDS - Global

The only analog tension meter in the world with all stainless steel hardened gears, and shock-proof industrial-grade internal gear movement

Newman Tension Meter TDS - Global

Use this digital gauge to measure the EOM of your screens prior to exposure so that your exposure program and eventual ink deposits will be correct

Positector 6000 Thickness Gauge TDS - USA+EMEA

Use this digital gauge to measure the EOM of your screens prior to exposure so that your exposure program and eventual ink deposits will be correct

Positector DFT Thickness Gauge TDS - Global

Use this digital gauge to measure the peaks and valleys of your stencil surface to understand if the surface is too rough or too smooth to create precise ink deposits

Roughness (Rz) Meter TDS - USA+EMEA

When diazo/dual-cure stencils are moist and are exposed in that condition, they suffer from loss of resolution, and any moist screen can also stick to vacuum glass. With a Moisture Meter, it is simple and quick to confirm that a coated screen is fully dried before subjecting it to an exposure program.

TQM Aquacheck TDS - Global

This small, light weight portable spectrophotometer is designed for easy operation and high precision for a variety of functions. It measures the wavelength and output interval of light sources in your screenmaking area - both the exposure equipment and ambient lighting

Spectrophotometer TDS - Global

SAATI’s 21 Step Guide is a day one priority for every screen printer across every application. This small tool is applied to the stencil material prior to exposure, and when developed tells you whether the stencil has over or under exposure, or is dialed in for the best print quality. Count the number of progressively darker steps of the calculator that have adhered to the mesh, and make one simple calculation to prepare a second test and confirm perfect stencil curing.

Take it one step further and apply the calculator to every screen you produce - you will know with certainty that every screen going to press is dialed in for high resolution and durability.

21 Step Guide TDS - Global

This handy guide is fixed to emulsion prior to exposure and upon developing reveals resolution and definition for 4 progressively shorter exposure times – 70%, 50%, 33% and 25% of the actual test. Compare the results between steps to make an informed decision about what result matches your exact needs.

Exposure Calculator TDS - Global

A compact and simple to read tool that confirms squeegee hardness for blades without a stated value, it also helps you identify squeegee that have softened, so you always go to press with the right blade for accurate printed results.

Rex H-1000 Durometer Gauge TDS - Global

This powerful handheld microscope allows you to check your halftones on substrates, to check whether details have narrowed or closed prior to printing, and to check the quality of the edge definition with up to 200x magnification

ViTiny 300 Plus Microscope TDS - Global

• Fastest evaporating press wash
• Works on most inks
• VOC free

Remove PW1 TDS - USA

• Recommended for use with Solvent based, UV-Cured inks and 2-part inks
• Flash point 43ºC/110ºF
• Fast drying product that is highly effective on difficult to clean inks
• Can be used to remove pallet adhesives on press

Remove PW7 TDS - Global

• Press wash recommended for use with Solvent-Based, UV-Cured and Textile inks
• Flash point 62ºC/143ºF
• Contains no chlorinated solvents or toxic organic substances
• Compatible with automatic cleaning machines
• When used in automatic machines can be recycled through the vacuum distillation process
• Slower drying product that is highly effective on difficult to clean inks

Remove PW13 TDS - EMEA

• Recommended for use with Solvent-Based, UV-Cured and Textile inks
• Flash point 43ºC/109ºF
• Compatible with automatic cleaning machines
• When used in automatic machines can be recycled through the vacuum distillation process
• Mild Scent

Remove PW30 TDS - EMEA

• Recommended for use with Solvent-Based, UV-Cured and Textile inks
• Flash point 43ºC/109ºF
• Compatible with automatic cleaning machines
• When used in automatic machines can be recycled through the vacuum distillation process
• Mild Scent

Remove PW36 TDS - EMEA

• Recommended for use with Solvent-Based, UV-Cured and Textile inks
• Flash point 43ºC/109ºF
• Compatible with automatic cleaning machines
• When used in automatic machines can be recycled through the vacuum distillation process

Remove PW40 TDS - EMEA

• Recommended for use with solvent based and UV-Cured inks
• Flash point 43ºC/109ºF
• Versatile and with fast drying formula

Remove PW2 TDS - USA

• Recommended for use with Solvent based, UV-Cured inks and 2-part inks
• Flash point 165ºC/329ºF
• Slower drying product that is highly effective on difficult to clean inks

Remove PW5 TDS - USA

• Recommended for use with Solvent based, UV-Cured inks and 2-part inks
  Flash point 44ºC/112ºF
  Fast drying product that is highly effective on difficult to clean inks

Remove PW6 TDS - USA

• Recommended for use on all inks
• Flash point >94ºC/>200ºF
• Low VOC at 90g/L and complies with SCAQMD regulations
• Non-flammable

Remove PW8 TDS - Global

• Ready to use gel emulsion remover
• Easy to apply by brush
• Smooth gel that spreads easily and stays put, for maximum effectiveness
• Contains built in degreaser that cuts through any ink/solvent residue to ensure fast and efficient stencil removal

Remove ER4 TDS - USA+EMEA

• Concentrated emulsion remover powder that dissolves in water to produce stencil stripper solution
• Economical
• Highly concentrated product
• Recommended to be dissolved at 1% by weight in water for full strength working solution for spray application

Remove ER1 TDS - USA+EMEA

• Liquid concentrated emulsion remover that includes powerful built-in degreaser
• Dilute 1:35 by volume, or 1:25 by weight to provide full strength working solution for spray application
• Very easy to dissolve and will not crystallize
• Degreaser cuts through any greasy film left after ink removal and this ensures fast and efficient stencil removal

Remove ER2 TDS - USA+EMEA

• Liquid concentrated emulsion remover that mixes 1 part product with 4 parts water
• Economical product for spray application
• Very easy to dissolve and will not crystallize

Remove ER5 TDS - USA+EMEA

• Economical
• Most concentrated liquid reclaimer
• Dilutes 1:80 by volume or 1:50 by weight to make full strength working solution for spray application
• Can be diluted up to 300:1 by volume or 200:1 by weight, depending on requirements for use in automated screen recycling systems
• Will not crystallize or block spray nozzles

Remove ER10 TDS - USA+EMEA

• Super concentrated liquid emulsion remover
• Economical
• Highly concentrated liquid reclaimer
• Dilutes 1:40 by volume or 1:25 by weight to make a full strength working solution for spray application
• Can be diluted up to 150:1 by volume or 100:1 by weight, depending on requirements for use in automated screen recycling systems
• Will not block spray nozzles

Remove ER13 TDS - USA+EMEA

• Super concentrated liquid emulsion remover
• Economical
• Highly concentrated liquid reclaimer
• Dilutes 1:40 by volume or 1:25 by weight to make a full strength working solution for spray application
• Can be diluted up to 150:1 by volume or 100:1 by weight, depending on requirements for use in automated screen recycling systems
• Will not block spray nozzles

Remove ER25 TDS - USA+EMEA

• Low cost liquid concentrated emulsion remover with built-in degreaser
• Dilute 1:25 with water to provide working solution
• Easy to dissolve and will not crystallize
• Removes all types of emulsion or capillary film stencils

Remove ER26 TDS - Global

• Concentrated emulsion remover used for dip tank reclaiming of textile screens
• Mix 1:10 with water for optimum results
• When mixed with SAATI Remove IR18, the solution is used as one-step process for ink and stencil removal
• Long lasting and economical

Remove ER6 TDS - USA+EMEA

• Emulsion remover concentrate that is mixed with Gelative ER6, to make a reclaiming gel for textile screens
• Mix 1:1 with Gelative ER6 for optimum results as spray on ‘dip tank in a bottle’ process
• Easily applied by spray, or brush, and allows for batch reclaiming of multiple screens
• Stays put where applied for maximum effectiveness
• Fast acting and economical, no waste

Remove ER6 Plus TDS - Global

• Produces clear stable gel when mixed with Remove ER6/ER6 Plus and removes ink and emulsion in one easy step
• Works with all photo emulsions and capillary film
• Clings to screen for maximum efficiency
• Boosts cleaning power to minimize ghost image

Gelative ER6 TDS - Global

• Pink, viscous, water-based lotion
• Pleasant cherry scent
• Moisturizes skin while cleaning inks, oils and more
• Contains medium-grit abrasive to accelerate the removal of difficult soils

Remove HC8 TDS - Global

• Viscous light green water-based lotion
• Pleasant green apple scent
• Moisturizes skin while cleaning inks, oils and more
• Contains fine-grit abrasive to accelerate the removal of difficult soils

Green Apple Hand Cleaner TDS - Global

The MBX Metal Blaster powers specialized wire brush belts that quickly strip epoxy, mesh and ink from aluminum screen frames. The cleaned surface is perfectly textured for bonding new screen mesh.

MBX Tool TDS - USA

Use the squeegee scraper to spread adhesives, blockouts and screen fillers. Available in 2 & 6" widths (5 & 15 cm).

Brushes for applying polyurethane adhesives during the screen stretching phase.

Brushes for spreading reclaim chemicals and screen scrubbing.
