SAATI is not only a manufacturer of mesh, emulsion and chemicals, but also an innovator in the equipment segment. We have leveraged our partnerships with builders around the world to design and produce a full range of award-winning equipment for both screen making and recycling.
SAATI equipment falls into five categories:
Stretching | Coating | Drying | Imaging and/or Exposure | Screen Washing
Proper screen tension is a requirement for accurate details and halftones. High quality and productivity are requirements for in-house screen tensioning. SAATI offers both pneumatic and manual screen stretching options.
Consistent emulsion thickness is a critical parameter that dictates final image fidelity and quality. Plug-and-play high quality automated screen coating machines help you to improve your coated screen quality and output with reduced physical exertion. It’s much simpler to train operators, or to substitute them in times of need. SAATI offers the widely adopted ProCoat line of sophisticated yet affordable coating machines, in configurations that consider footprint and application.

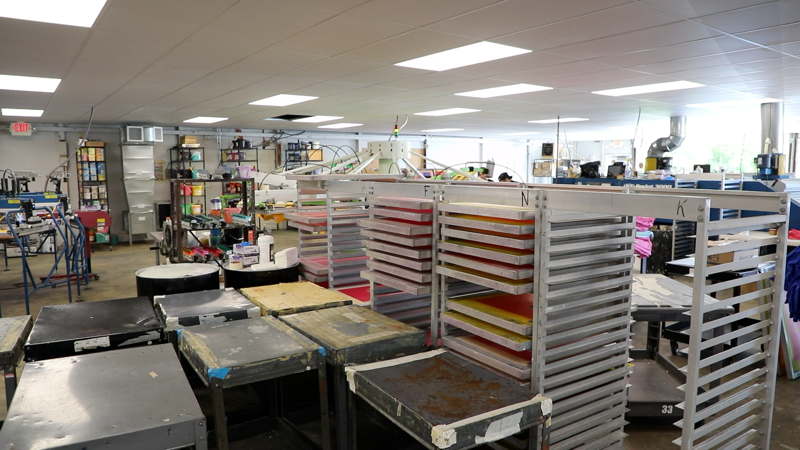

Enhance your productivity with space-saving, effective screen drying tools. SAATI’s screen drying chambers and rolling screen racks help printers to turn screens around faster, in a controlled way, more comfortably, with a more organized screen department.
SAATI LTS is the perennially awarded line of laser diode powered combined imaging & exposure units enabling shops to print sharper, faster, and with lower costs than any other system.
CST offers DMD-chip powered stencil imaging/exposure systems for flat and rotary screens, with horizontal and vertical variants and resolutions of 1000-25400 dpi. CST is proud to service the over 2,000 machines in the market for customers to meet their needs for the latest technology.
SAATI has been at the forefront of more sustainable exposure lamps and units outside of the computer-to-screen arena. SAATI’s Pro-Lite series are assembled exclusively with 405nm LED arrays - emitting only the perfect targeted wavelength to thoroughly cure stencils, with far less energy expenditure than traditional systems, and with no ambient heat, so the savings extend to climate control as well. Pro-Lite lamps are also the preferred solution for printers looking to substitute failing light sources integrated into older exposure units.
From horizontally integrated Flat Reclaim counters and premium washout booths to pneumatic chemical dispensing units and optimized scrub pads, SAATI offers all the equipment and accessories that supercharge your reclaim process and efficiency in the USA.
0 products
Stretching
The SAATI Top 12 Plus Clamp provides optimum pneumatic screen tensioning. This highly advanced yet easy to use modular system achieves the highest recommended tensions more uniformly, without over-tensioning the corners.
Stretching
The SAATI Stretch Mechanical provides the highest reliability and control of any mechanical stretching system. Among the most notable features are its independent warp/weft tensioning capability and self-standing configuration that eliminates the need for a table or external power requirements.
Coating

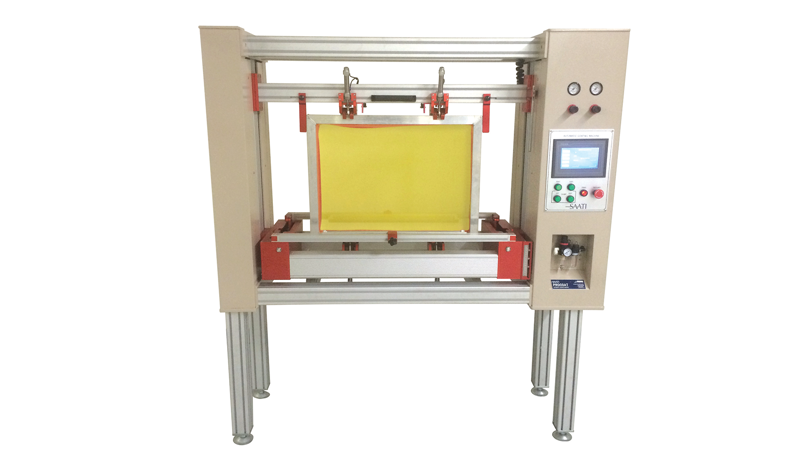

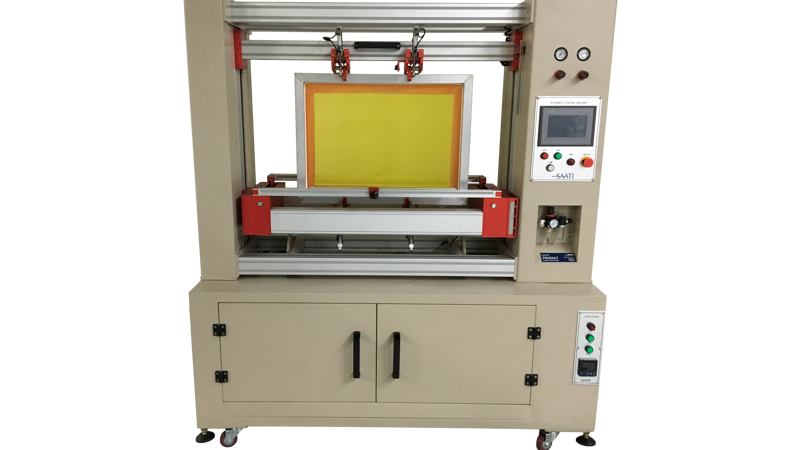

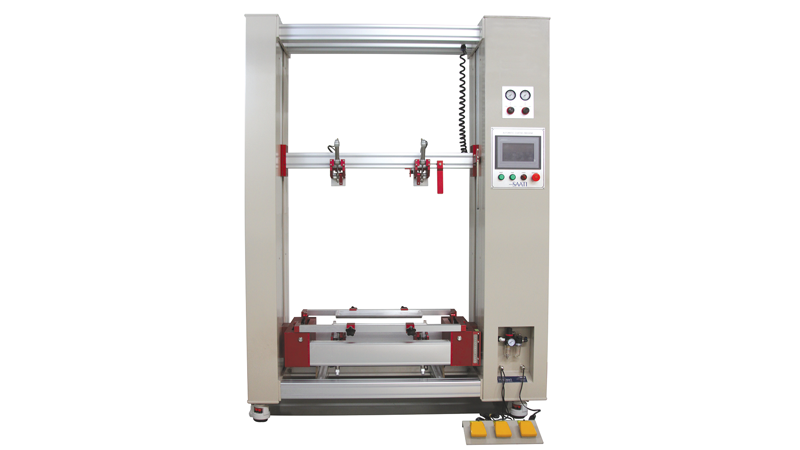

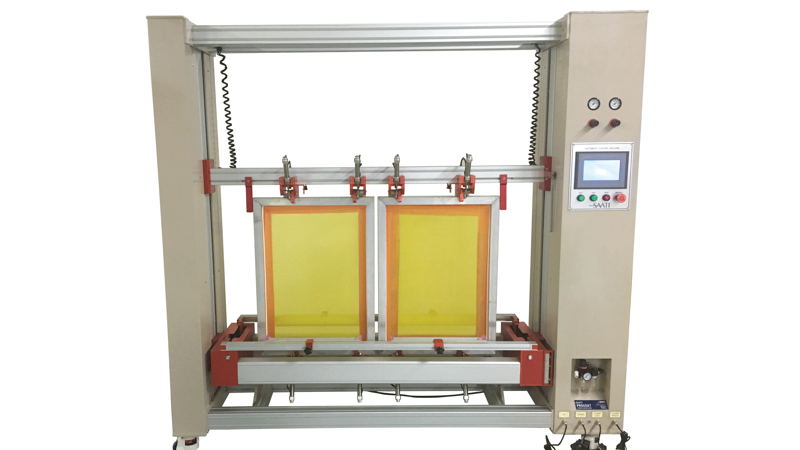

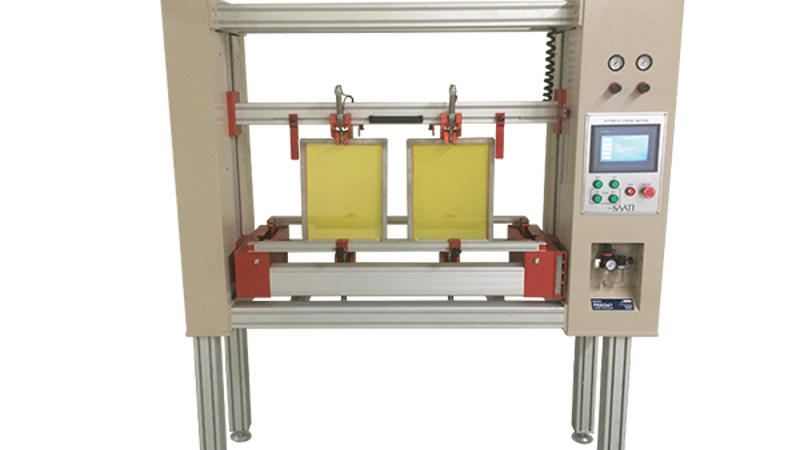

The leading flexible, programmable & automated machine for coating 1 or 2 medium/small screens
Coating
Coating
Coating
Coating
Coating

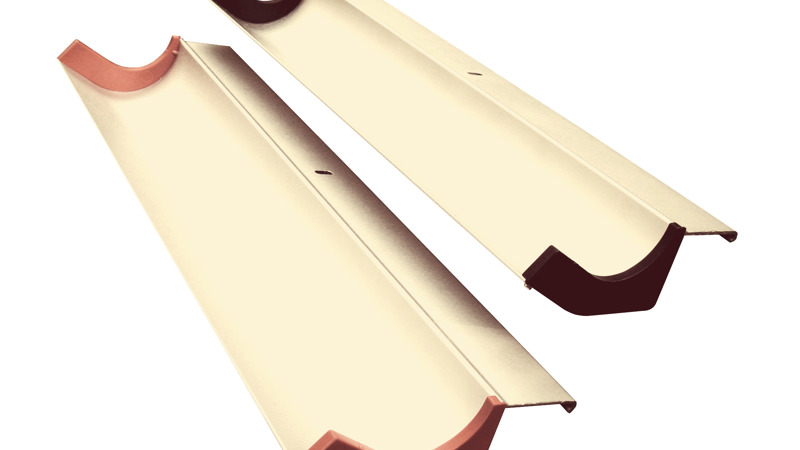

This specially designed anodized aluminum coating trough is interchangeable with any ProCoat coating machine. Made of precision extruded aluminum, then anodized, these troughs clean-up simply with water.
Typically sold in pairs, front and back, the end caps are color-coated; red for the squeegee side and black for the print side. The front trough normally measures 1” / 2.54 cm larger than the back trough. Custom sizes and endcaps available. Materials in stock with standard delivery less than a week. Standard lengths up to 118” / 300 cm.
Coating

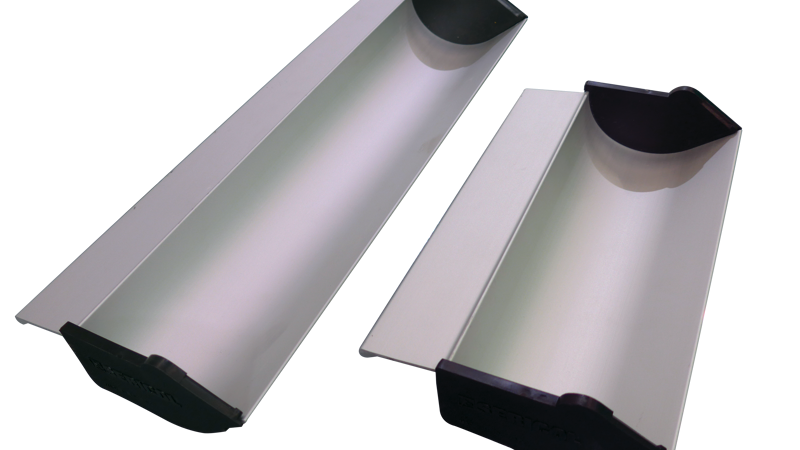

This specially designed anodized-aluminum scoop coater has two different coating edges. This offers the user more versatility and more control of the stencil thickness. One edge is sharp for depositing thin emulsion coatings, and the other is thicker and more rounded for depositing heavier emulsion coatings.
The scoop coater is made of precision-extruded aluminum with a corrosion-resistant anodized finish that makes cleanup easy. The end caps are removable for more convenient and thorough cleaning. A trough cover snaps on to prevent debris from contaminating the emulsion for temporary storage as well as added protection.
Drying

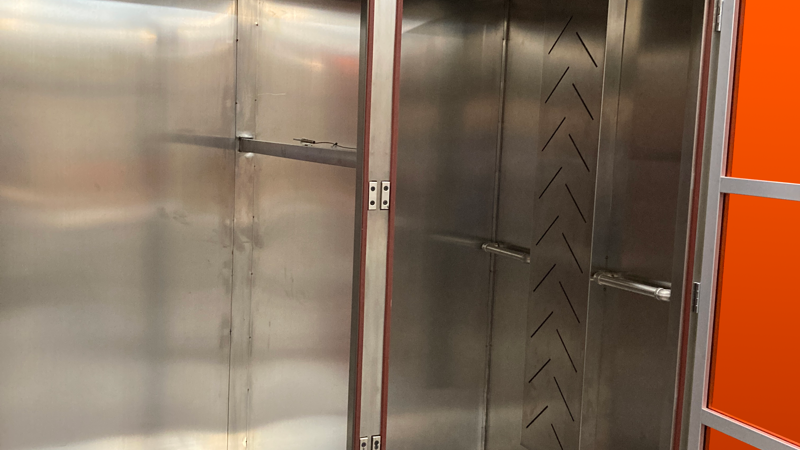

Thermostat drying chamber compatible with most rolling screen racks
Drying
SAATI LTS Imaging & Exposure

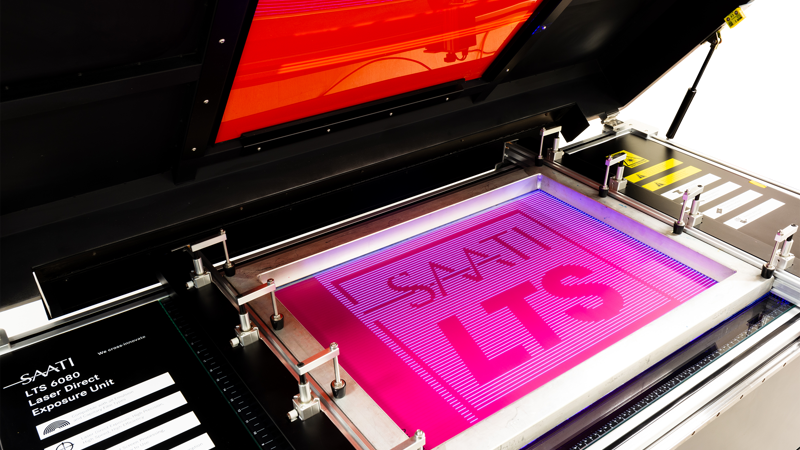

The original glass down model with a 60x80cm / 23.5x31.5” total image area.
SAATI LTS Imaging & Exposure

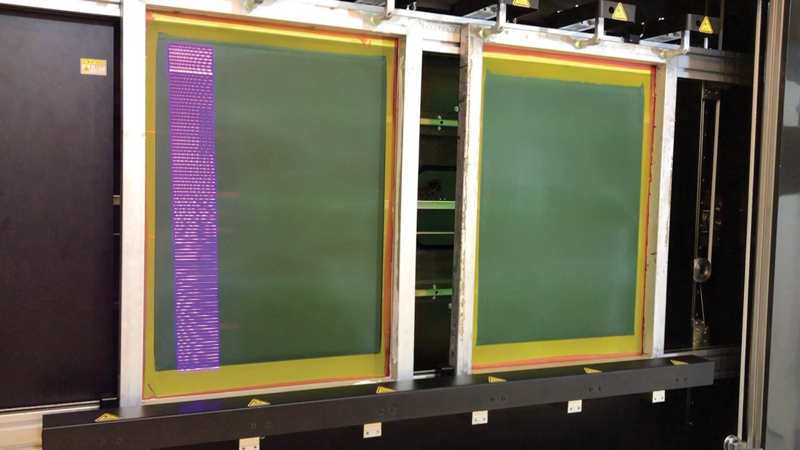

Glass-free vertical unit with a 60x120cm / 23.5x47.2” image area: also processes 2 standard textile frames at once (58x78cm / 23x31”)
SAATI LTS Imaging & Exposure
Glass-free vertical unit with an 80x120cm / 31.5x47.2” image area: also processes 2 larger standard textile frames at once (64x91cm / 25x36”)
SAATI LTS Imaging & Exposure

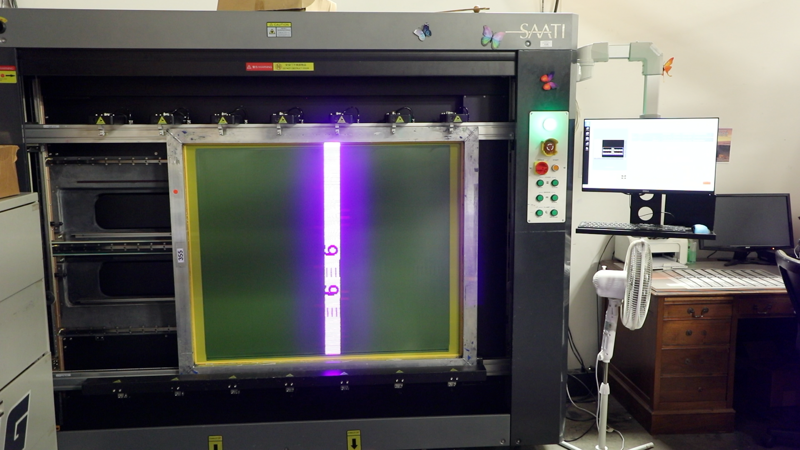

The largest model in the glass-free 1st gen vertical range, with a 100x150cm / 39.4x59.1” image area: also processes 2 larger standard textile frames at once (64x91cm / 25x36”)
SAATI LTS Imaging & Exposure

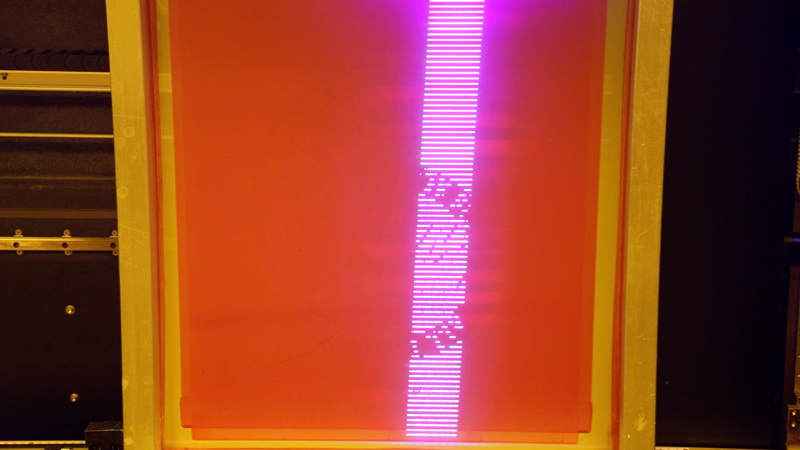

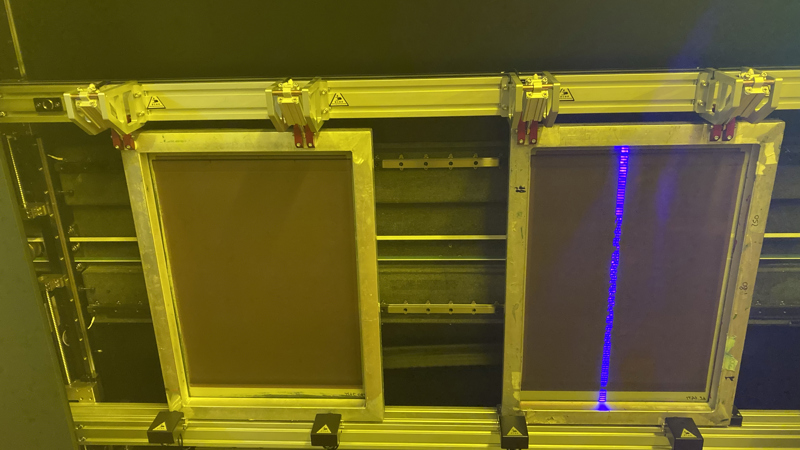

The enhanced vertical 8012 unit with reinforced mechanical and structural features, support for 5080 DPI input resolution and independent frame clamping controls.
80x120cm / 31.5x47.2” image area: also processes 2 larger standard textile frames at once (64x91cm / 25x36”)
CST DMD Imaging & Exposure

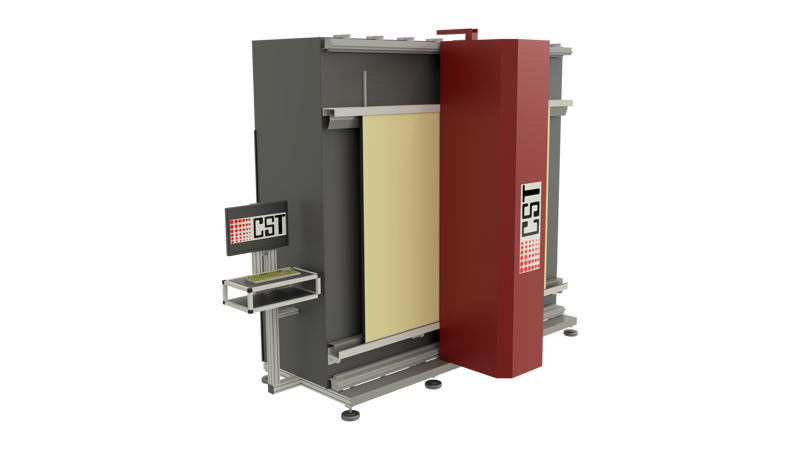

The DLE is supplied as a vertical version and is customized to meet individual requirements. It was one of CST's first models to be sold and has been further developed over the years - this is a flagship model.
CST manufactures systems according to customer requirements in sizes from 2.0 x 2.0m up to 8.0 x 4.0m, or even larger upon special request. The resolutions range from 1000 to 2540 DPI.
Screens can be loaded from the front or sides, various screen weights can be used, and the loading/offloading can be automated.
Applications: Industrial, Glass, Graphics, Printed Electronics, Textile
CST DMD Imaging & Exposure
This vertical one-piece system is considered “plug-in and play,” with a reduced installation time. The standard configurations are for screens 1 x 1m to 1.5m x 1.5m, with larger systems on special request.
The resolutions vary between 1,000dpi and 2,540dpi.
This system is also often ordered as a side-loading semi-automatic version or as a complete in-line version. Otherwise it loads from the front or sides, saving space.
Applications: Industrial, Container, Glass, Graphics, Printed Electronics, Textile
CST DMD Imaging & Exposure

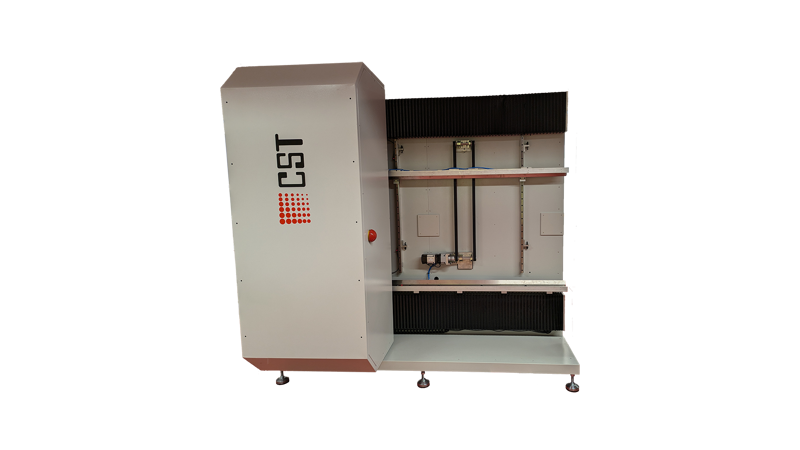

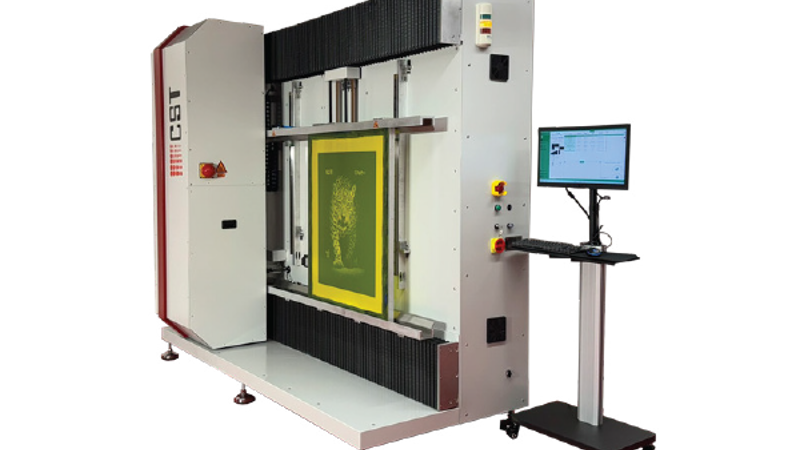

For the electronics printer that must work with high definition art files but wants to avoid the costs and production delays that come with film positives, CST is launching the CST DLE Smart.
This machine pairs a 48W long-lasting laser light source with 1920 x 1080 DMD chip technology and autofocus function to accurately image & expose high definition images with input resolution up to 25,400 DPI - without film positives.
Applications: Electronics, Industrial, Textile
CST DMD Imaging & Exposure

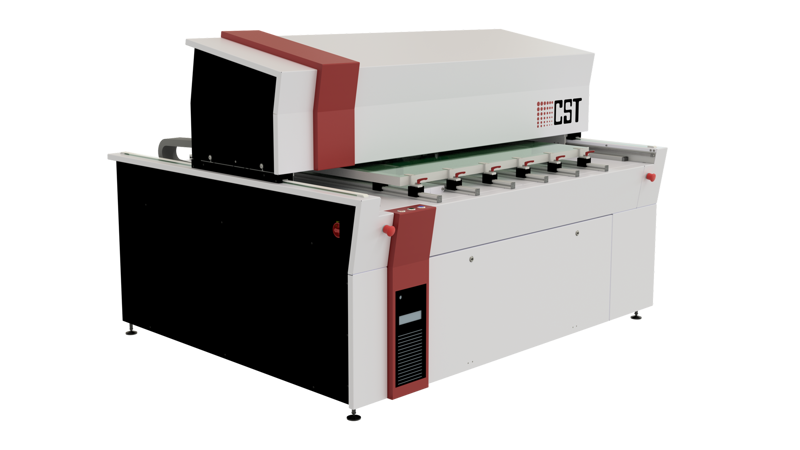

The DLE ECO combines economy and performance at its best. Thanks to its innovative design, this horizontal machine is of interest to many customers who require a resolution of 1,000 dpi.
The screen can be loaded from any side and then clamped manually. The CST clamping device makes positioning easy and ensures that the starting point is the same for all screens, which offers a considerable time savings during press setup.
This system is always offered as a stand-alone.
Applications: Textile
CST DMD Imaging & Exposure

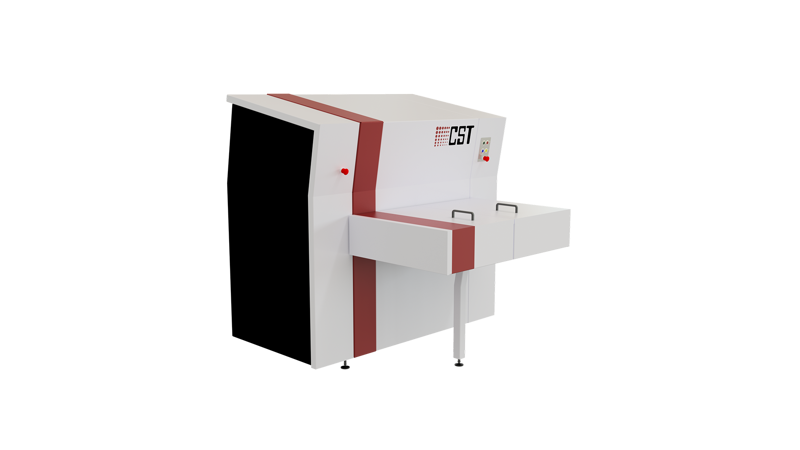

The CST DLE Label is always supplied horizontally in one piece - plug and play for reduced installation time.
The system is optimized to make stencils for printing labels on hollow glass, plastic and metal.
The system is available with different maximum image sizes up to 1.2 x 1.0m with a toggle between 2400 and 2540 DPI.
Applications: Hollow Glass, Container
CST DMD Imaging & Exposure
CST DMD Imaging & Exposure
Pro-Lite Exposure

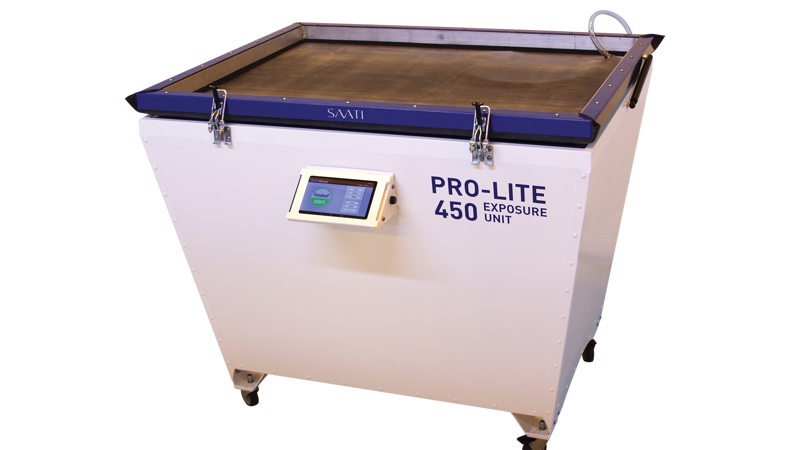

The exposure unit powered by SAATI Pro-Lite LED technology
Pro-Lite Exposure

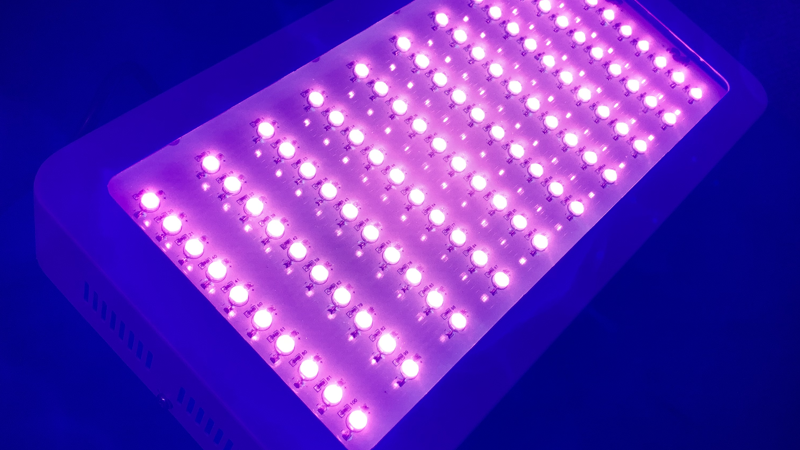

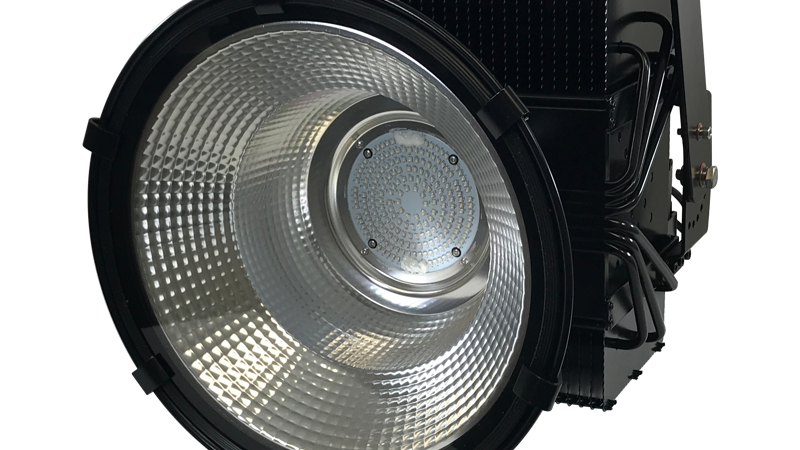

The sustainable targeted wavelength LED exposure lamp with super low energy requirements
Pro-Lite Exposure
Low cost, low energy LED exposure lamp perfect for post-exposure
Screen Washing
The integrated manual stencil disassembly line for the most efficient manual reclaim. Acting like a horizontal shelf, it’s possible to stack many flat screens at each stage of the reclaim process (improved further by SAATI DDU), allowing the chemical to do the hard work, minimizing scrubbing, and greatly increasing the productivity of the individual operator(s).
Screen Washing
Premium quality washout booth for both developing and reclaiming screen
Screen Washing
High quality washout booth for both developing and reclaiming screen
Screen Washing
High efficiency pneumatic pump system that practically eliminates refill downtime and lessens the hand fatigue stemming from manual spray bottles
Screen Washing
Highly chemically resistant brush pads with ergonomic plastic handles, fused without adhesives to prevent debonding
