Thik Series High Density Capillary Film

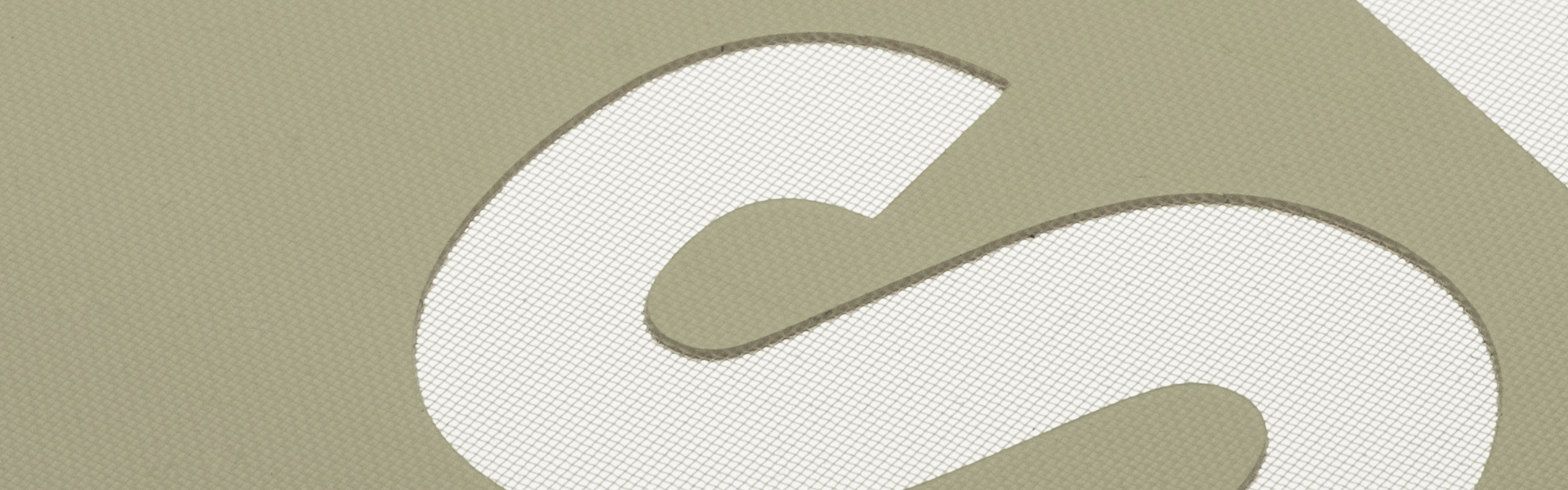

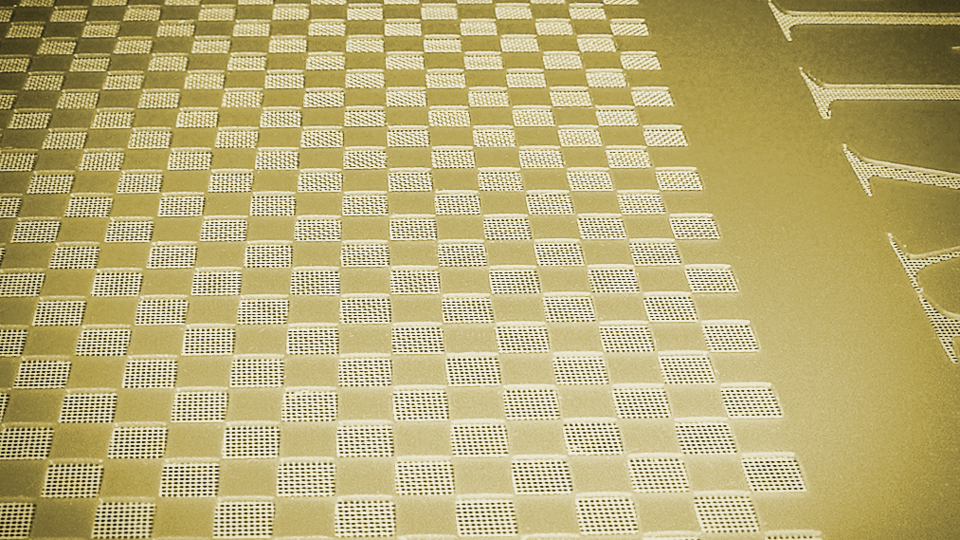

The Thik Series* are specially formulated fast exposing pure photopolymer capillary films, available in thicknesses from 100-700 microns.



* Thik Plus - yellow EMEA formulation - Technical Data Sheet
   Thik Film - legacy red USA formulation - Technical Data Sheet
   - Red product is being replaced by yellow Thik Plus

Product Details

The attributes that make the Thik Series a preferred choice for high density printers

Pure Photopolymer Formula

High speed exposure and long shelf life

High Resolution

Resolve fine details at very high EOM

Flexible Utility

Thik Series films are suitable for textile, electronics and ceramics printing applications

Thik Series

Thik Series

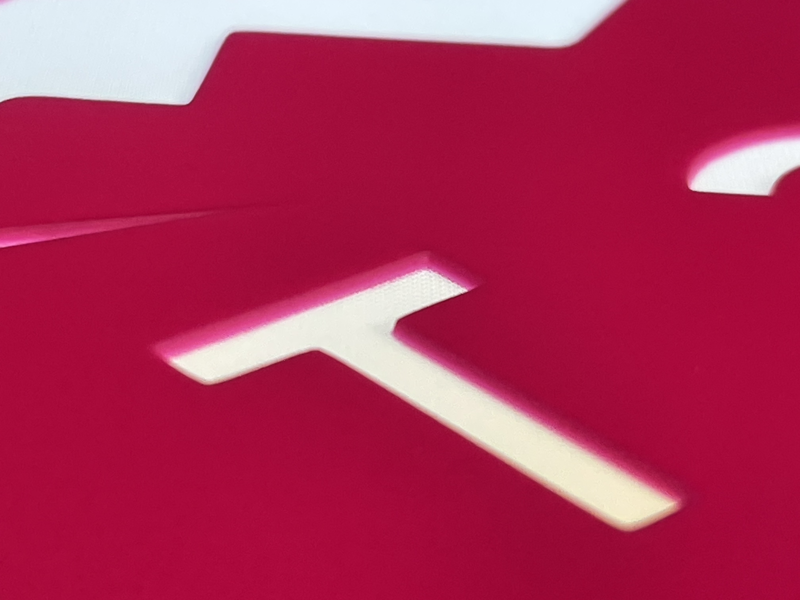

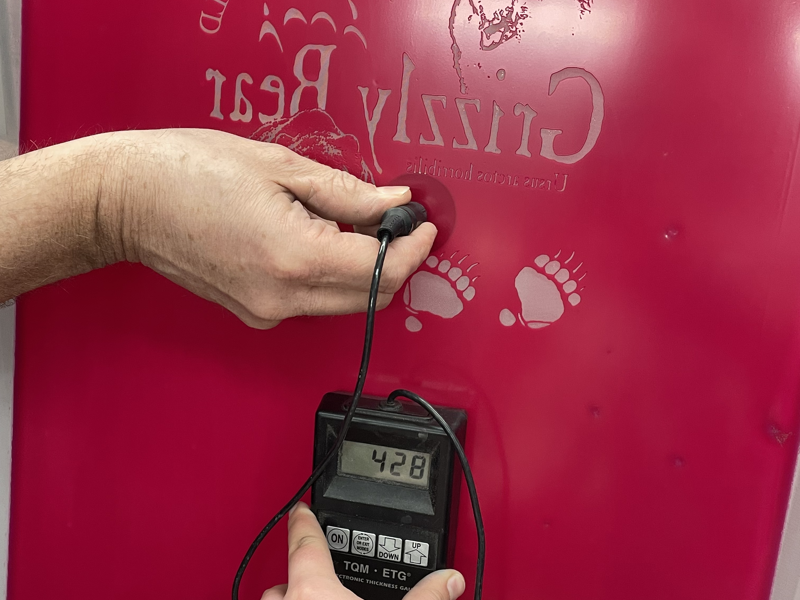

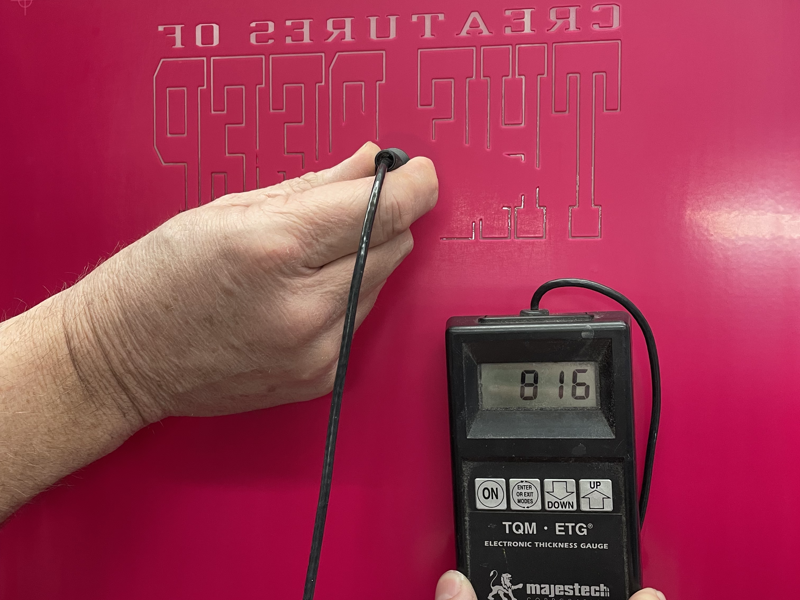

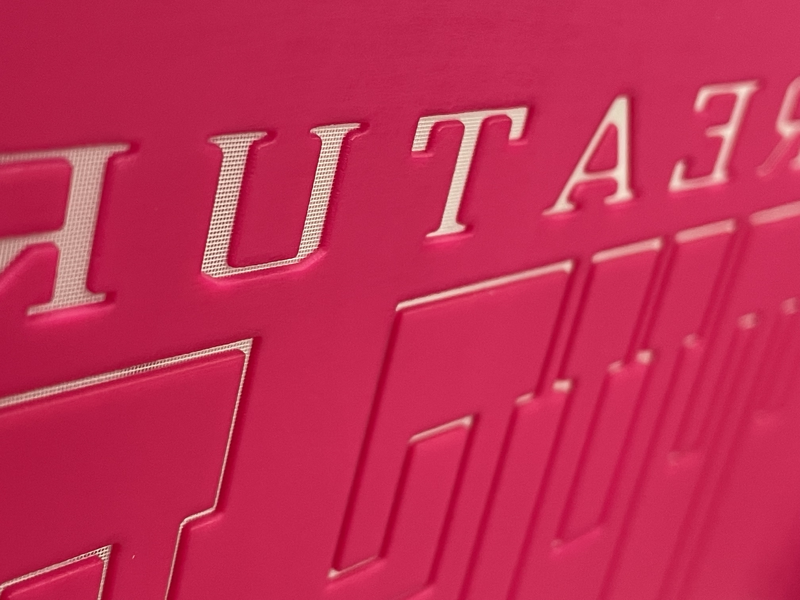

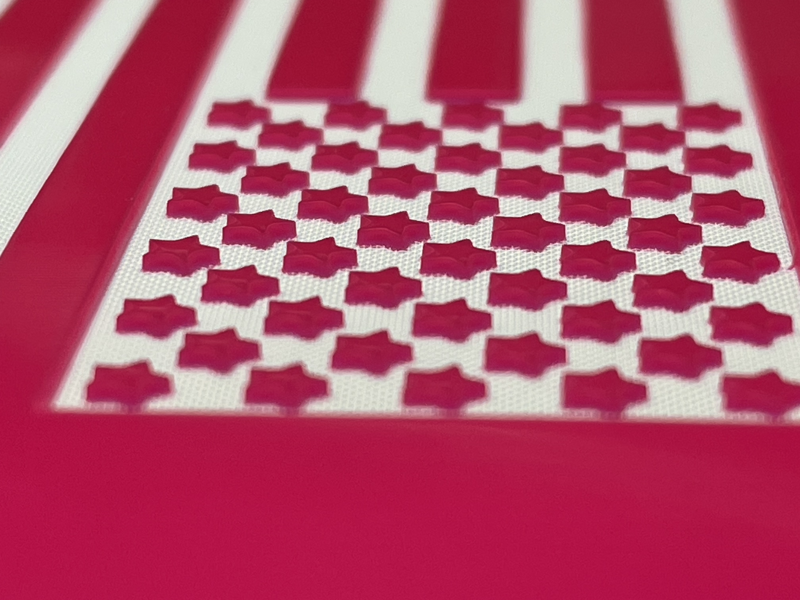

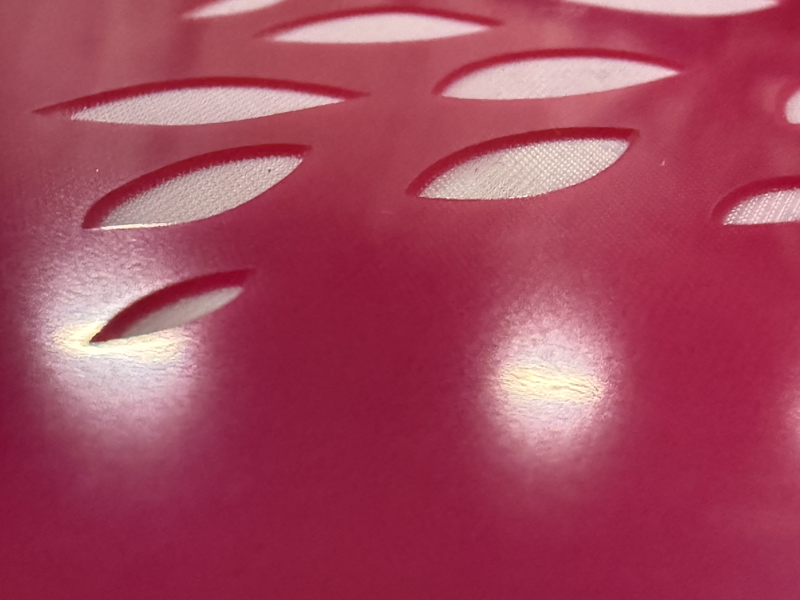

Click to expand the images of Thik Series capillary film (legacy red version is depicted here).

Easy to apply and expose high density stencil making with EOMs up to 700 microns, with high resolution and fast exposure times

Thik Series

Click to expand the images of Thik Series capillary film (legacy red version is depicted here).

Easy to apply and expose high density stencil making with EOMs up to 700 microns, with high resolution and fast exposure times

Thik Series

Click to expand the images of Thik Series capillary film (legacy red version is depicted here).

Easy to apply and expose high density stencil making with EOMs up to 700 microns, with high resolution and fast exposure times

Thik Series

Click to expand the images of Thik Series capillary film (legacy red version is depicted here).

Easy to apply and expose high density stencil making with EOMs up to 700 microns, with high resolution and fast exposure times

Thik Series

Click to expand the images of Thik Series capillary film (legacy red version is depicted here).

Easy to apply and expose high density stencil making with EOMs up to 700 microns, with high resolution and fast exposure times

Thik Series

Click to expand the images of Thik Series capillary film (legacy red version is depicted here).

Easy to apply and expose high density stencil making with EOMs up to 700 microns, with high resolution and fast exposure times

1 / 2
1 / 1

Available Specifications

Product Thickness Mesh Range
per CM		 Mesh Range
per Inch
Thik 100 100 microns 43-62 110-158
Thik 150 150 microns 34-55 86-140
Thik 200 200 microns  32-49 81-125
Thik 250 250 microns 28-43 71-110
Thik 300 300 microns 24-55 61-86
Thik 400 400 microns 15-30 37-74
Thik 700 700 microns 7-21 17-54

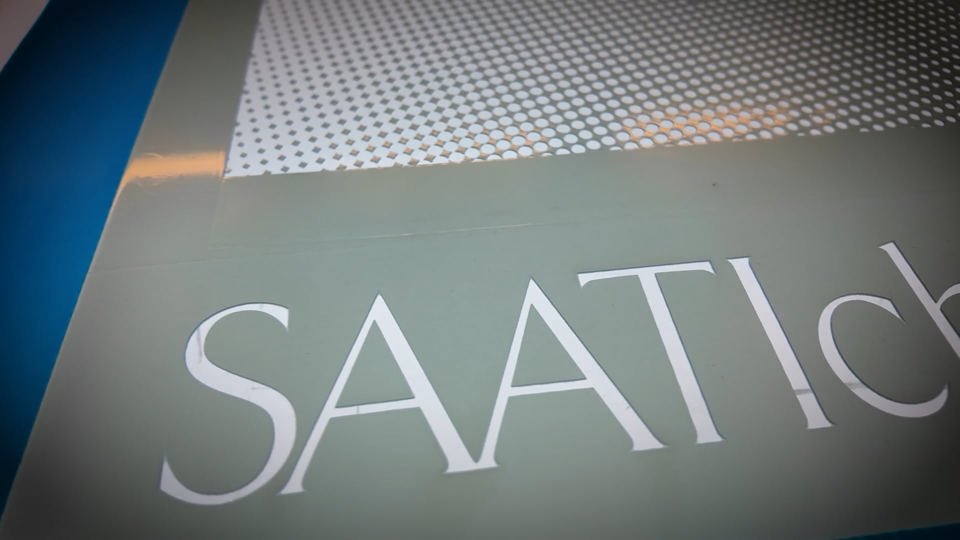

Thik Plus Stencil Making

See how easy it is to prepare high density stencils with Thik Plus

6 min

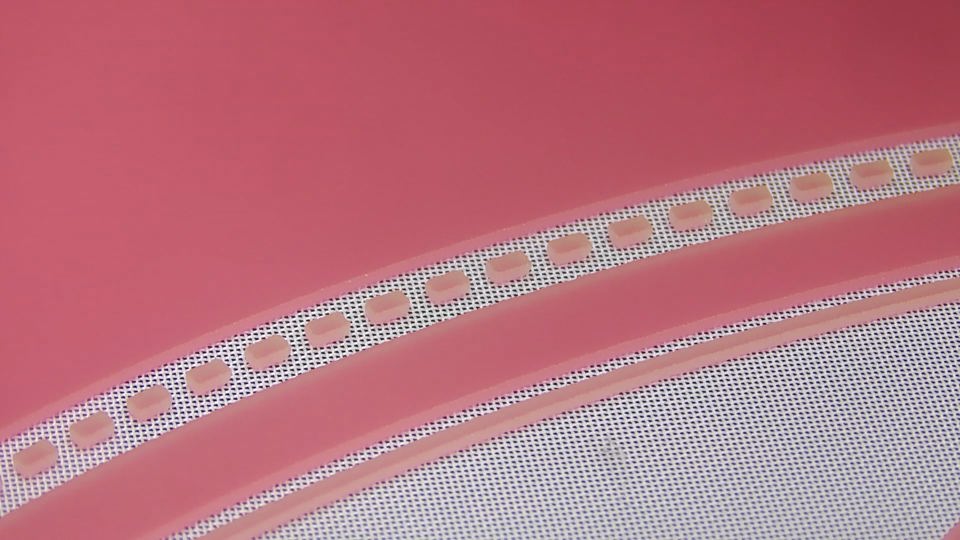

Under the Microscope: 700µm Thik Plus

See the highly geometric side walls of a 700µm stencil

20 sec
