SAATI has been at the forefront of producing more sustainable exposure lamps and units outside of the computer-to-screen arena. SAATI’s Pro-Lite series are assembled exclusively with 405nm LED arrays - emitting only the perfect targeted wavelength to thoroughly cure stencils, with far less energy expenditure than traditional systems, and with no ambient heat, so the savings extend to climate control as well. Pro-Lite lamps are also the preferred solution for printers looking to substitute failing light sources integrated into older exposure units.
The most important factors in stencil exposure are the directionality of the light and the wavelength of the light.
SAATI exposure equipment like the LTS and Pro-Lite series and CST equipment depend upon parallelized single-point, 405 nm LED light sources. This is the ideal combination for printers to thoroughly cure their stencils in the shortest amount of time while also using the least amount of energy.
405 nm light equally exposes stencils through the entire thickness and don't bounce off or escape out the back. Stencil adhesion is improved and print runs can be extended.
Emitting only the single most effective light wavelength using targeted LED or Lasers means a reduction in the energy used to expose screens. Legacy technologies generated a lot of heat which taxed air conditioning, and emitted a broad range of wavelengths that ultimately contributed nothing to stencil curing.
Single point light sources cast one crisp shadow, which is the ultimate goal of exposure. Multi-point light sources like LED strips project light towards the film positive or mask from multiple angles - which cause fine details to fill in.
Printers want to cast one sharp shadow
Multiple light sources ruin image resolution

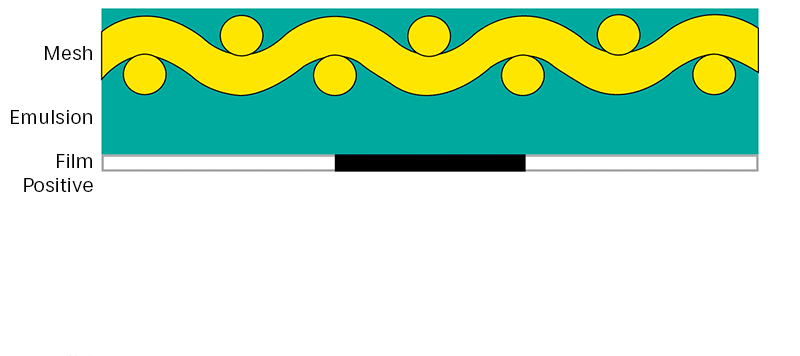

The wavelength is too short, so it doesn't penetrate the emulsion all the way through

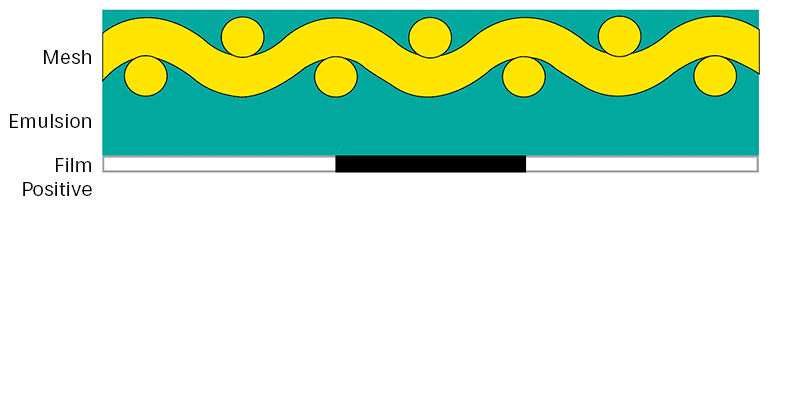

Multiple lights cast multiple shadows, and cause detail to fill in

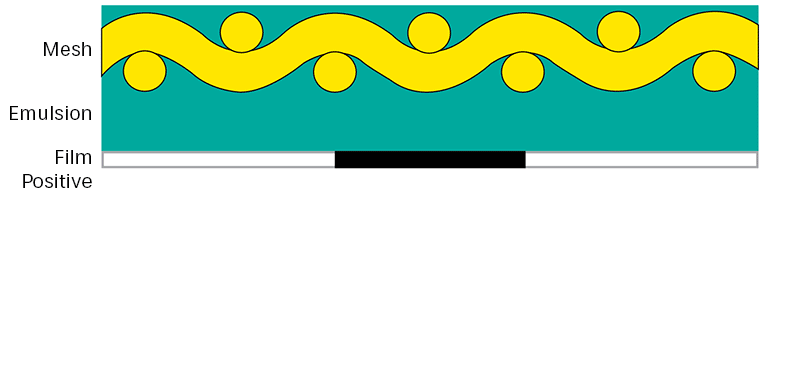

One parallel light source at the correct wavelength optimizes stencil quality
SAATI's complete line of screen making and recycling equipment boasts everything except the press
Proper screen tension is a requirement for accurate details and halftones. High quality and productivity are requirements for in-house screen tensioning. SAATI offers both pneumatic and manual screen stretching options.
Consistent emulsion thickness is a critical parameter that dictates final image fidelity and quality. Plug-and-play high quality automated screen coating machines help you to improve your coated screen quality and output with reduced physical exertion. It’s much simpler to train operators, or to substitute them in times of need. SAATI offers the widely adopted ProCoat line of sophisticated yet affordable coating machines, in configurations that consider footprint and application.
Enhance your productivity with space-saving, effective screen drying tools. SAATI’s screen drying chambers and rolling screen racks help printers to turn screens around faster, in a controlled way, more comfortably, with a more organized screen department.
SAATI LTS is the perennially awarded line of laser diode powered combined imaging & exposure units enabling shops to print sharper, faster, and with lower costs than any other system.
CST offers DMD-chip powered stencil imaging/exposure systems for flat and rotary screens, with horizontal and vertical variants and resolutions of 1000-25400 dpi. CST is proud to service the over 2,000 machines in the market for customers to meet their needs for the latest technology.
From horizontally integrated Flat Reclaim counters and premium washout booths to pneumatic chemical dispensing units and optimized scrub pads, SAATI offers all the equipment and accessories that supercharge your reclaim process and efficiency in the USA.

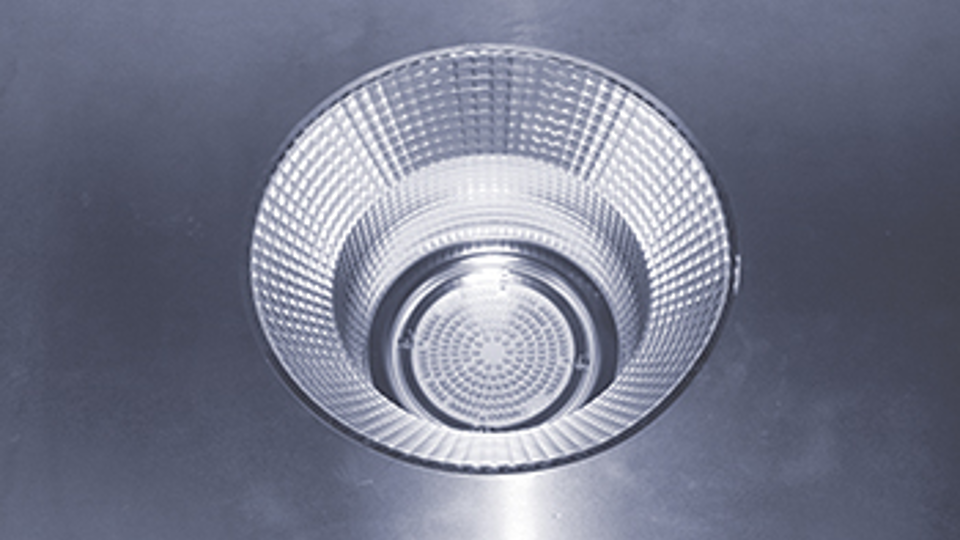

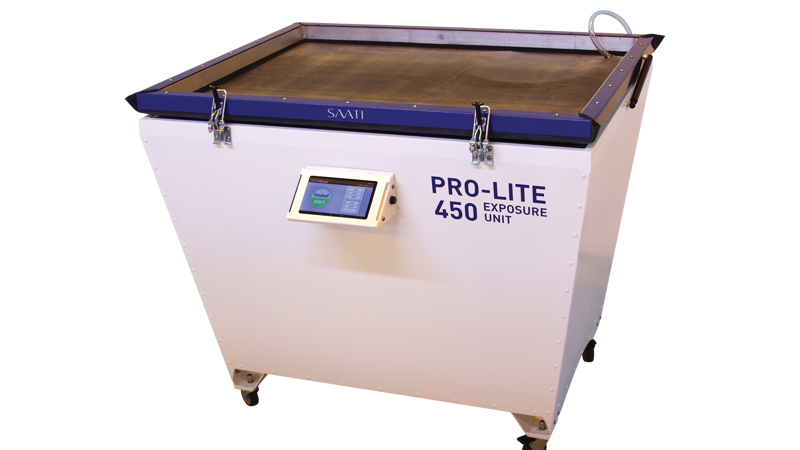

SAATI Pro-Lite 450 SCX
The exposure unit powered by SAATI Pro-Lite LED technology

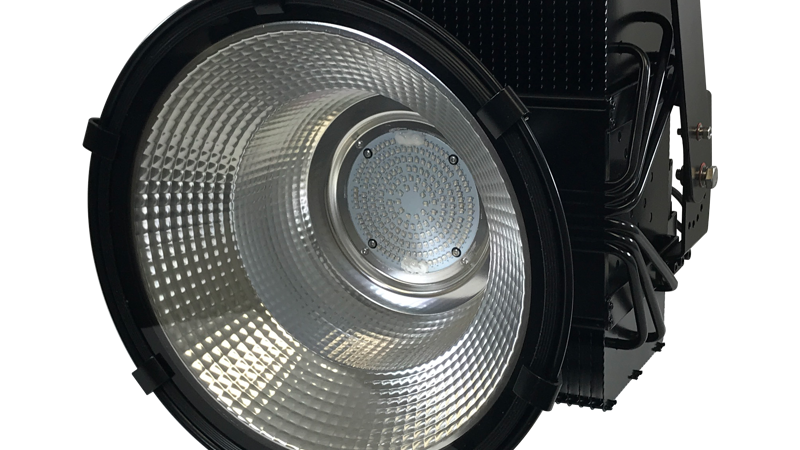

Pro-Lite 450 Exposure Lamp
The sustainable targeted wavelength LED exposure lamp with super low energy requirements

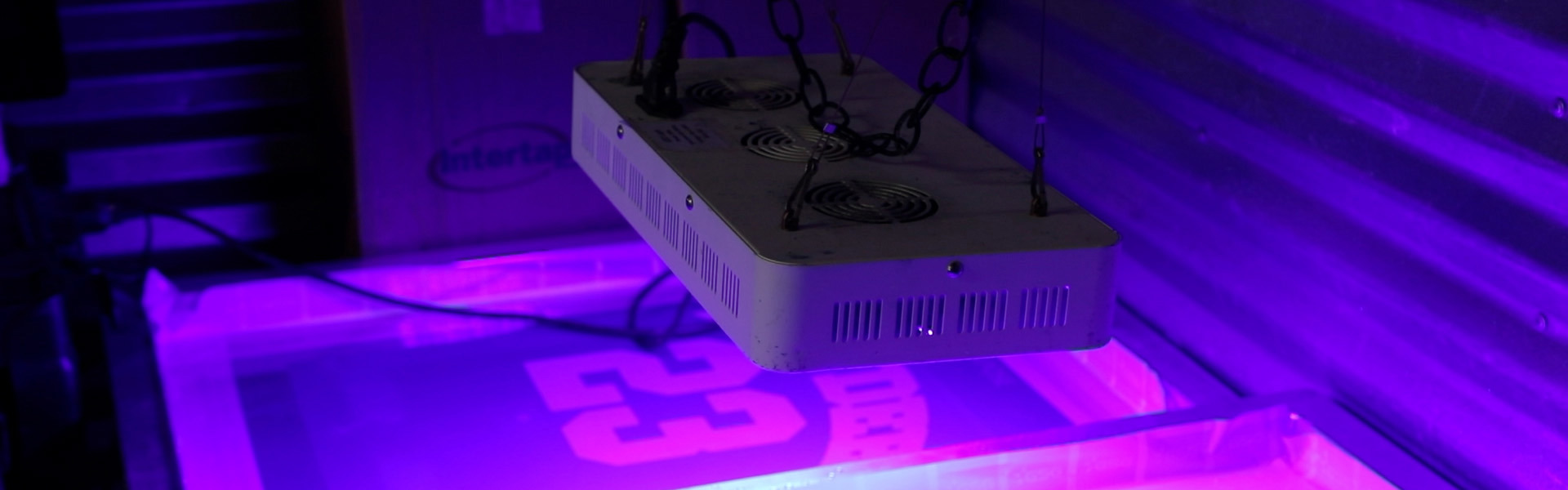

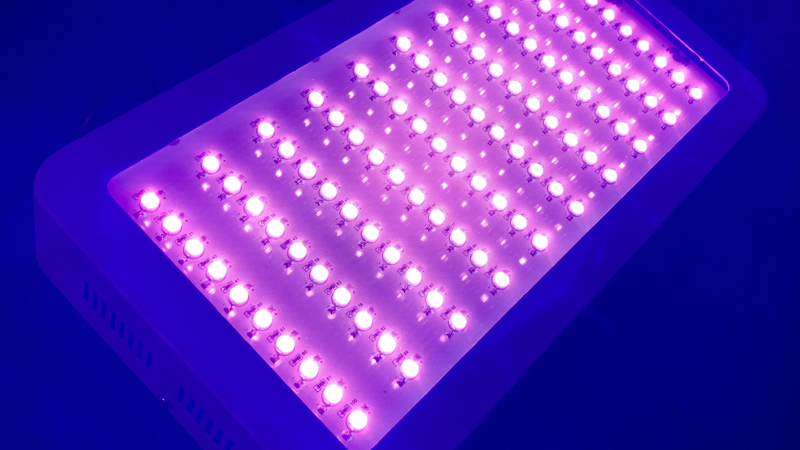

SAATI Pro-Lite 300 Multi
Low cost, low energy LED exposure lamp perfect for post-exposure
