SAATIgraf HSX4 Emulsion

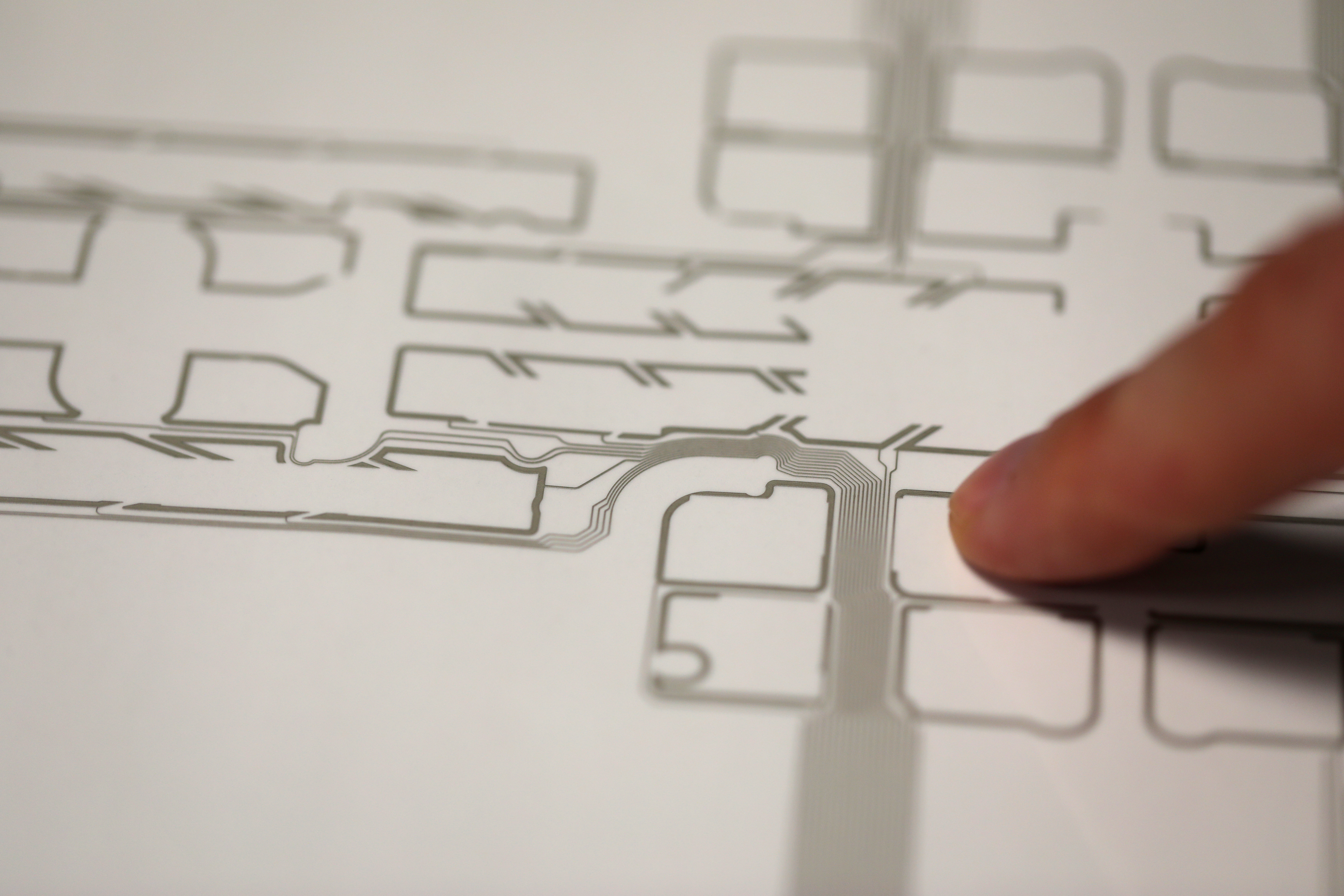

SAATIgraf HSX4 is a super high acuity emulsion developed especially for tight tolerance printing electronics printing, including touch screen panels, solar cells, and molded electronics.

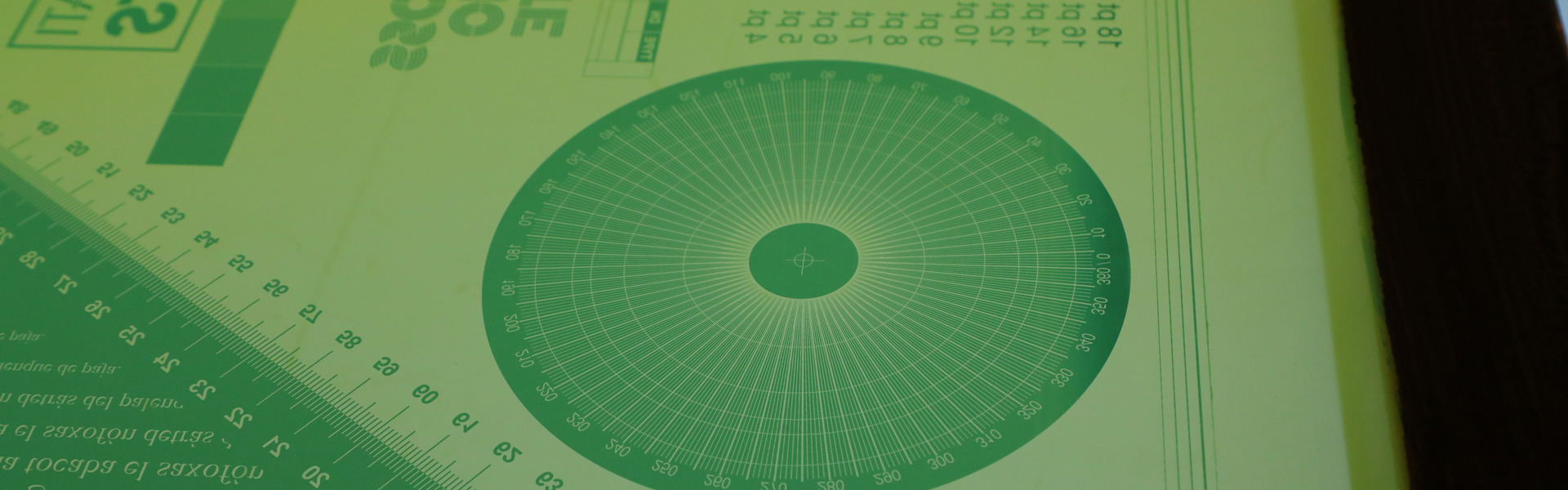

When paired with SAATI HiLo 165.24 (420 tpi) mesh it is possible to push the boundaries of synthetic meshes in electronics printing

View the Technical Data Sheet

Product Details

The attributes that make SAATI HSX4 Mesh the premier choice for electronics printing

High Solvent Resistance

Suited to use with aggressive industrial printing inks

Sub-Micron Dual-Cure Technology

Optimal Mesh Bridging for use with Stainless Steel Wire or Thin Thread Polyester

Extremely High Resolution

Excellent Resolution and Definition with smooth sidewall geometry for faithful microprinting of conductive structures

SAATIgraf HSX4 Emulsion

SAATIgraf HSX4 is the premier emulsion for high definition printed and molded electronics printing. Superior image definition creates precision ink deposits for reliable electronic performance.

SAATIgraf HSX4 Emulsion

SAATIgraf HSX4 is the premier emulsion for high definition printed and molded electronics printing. Superior image definition creates precision ink deposits for reliable electronic performance.

SAATIgraf HSX4 Stencils

SAATIgraf HSX4

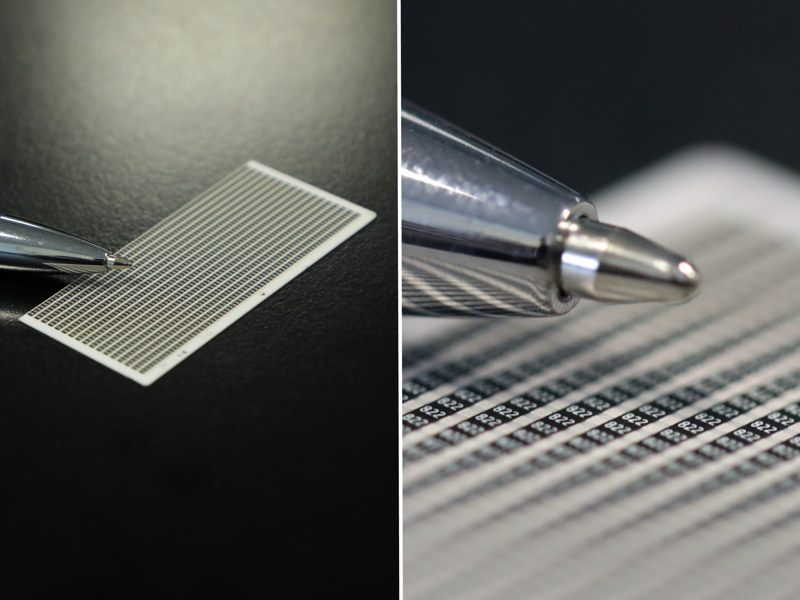

Microprinting for machine readable automated assembly of electronic components

SAATIgraf HSX4

SAATIgraf HSX4 on 360 wire mesh - 50 µm line

SAATIgraf HSX4

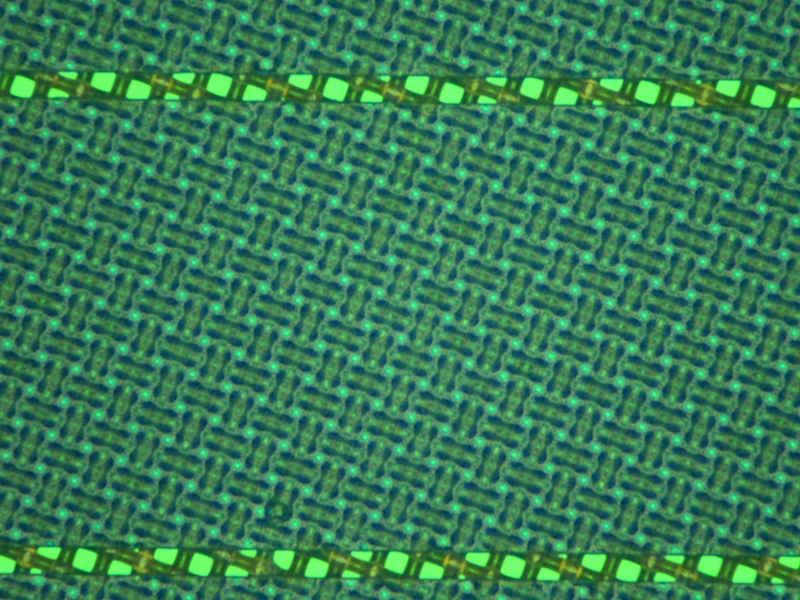

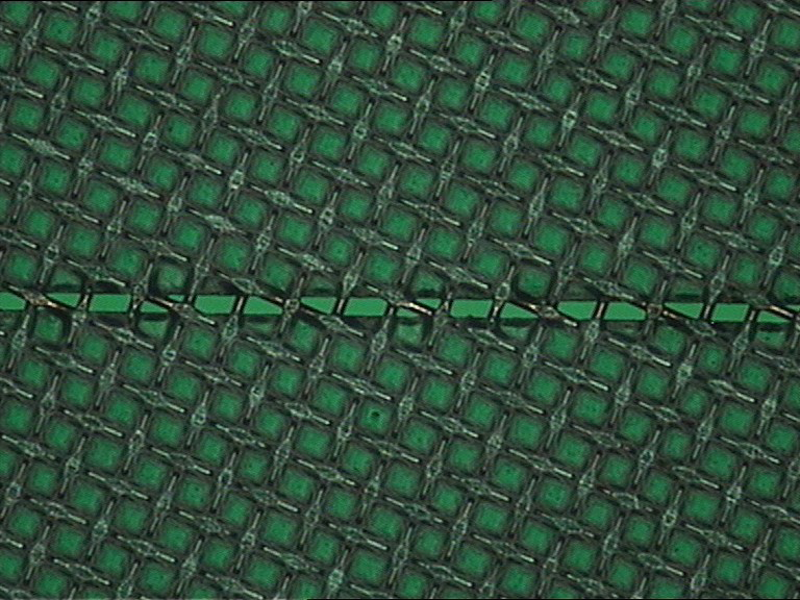

SAATIgraf HSX4 on Saatilene HiLo 165.25 synthetic mesh - 50 µm line

SAATIgraf HSX4

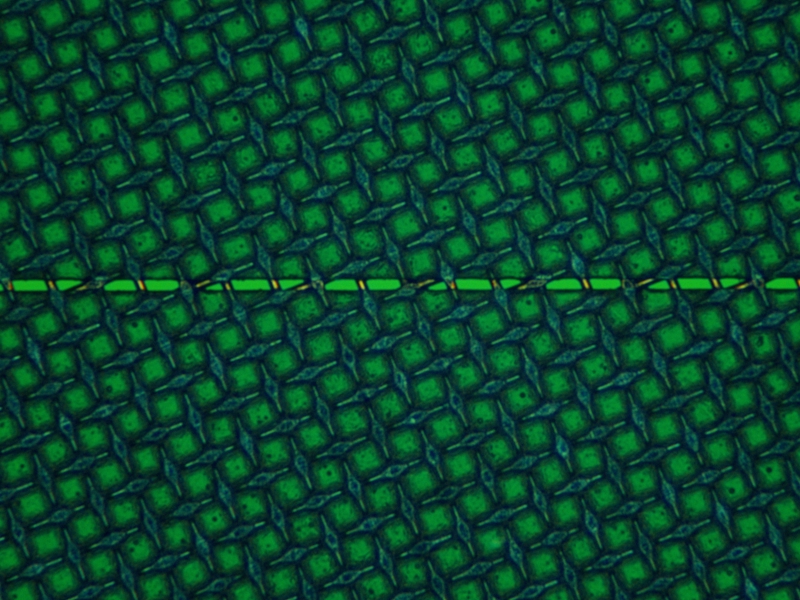

SAATIgraf HSX4 on 360 wire mesh - 20 µm line

SAATIgraf HSX4

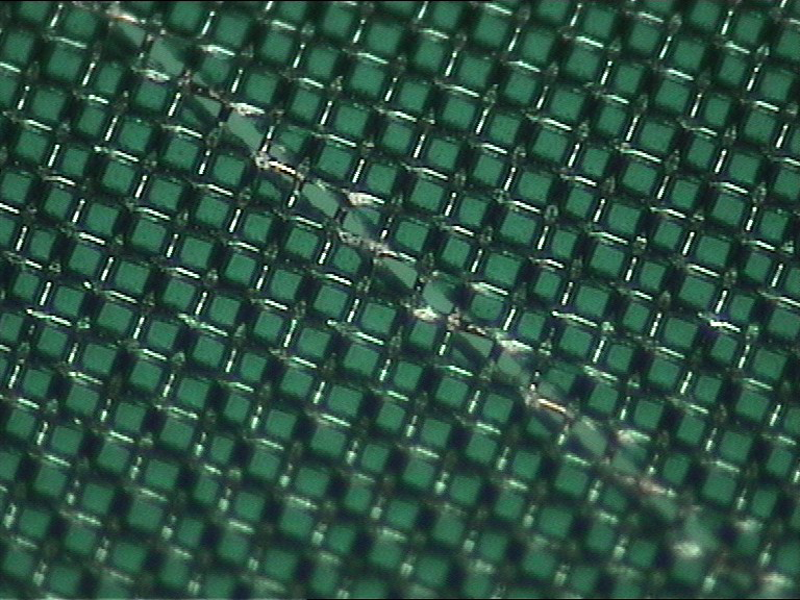

SAATIgraf HSX4 on 360 wire mesh - 60 µm line with angled view

SAATIgraf HSX4

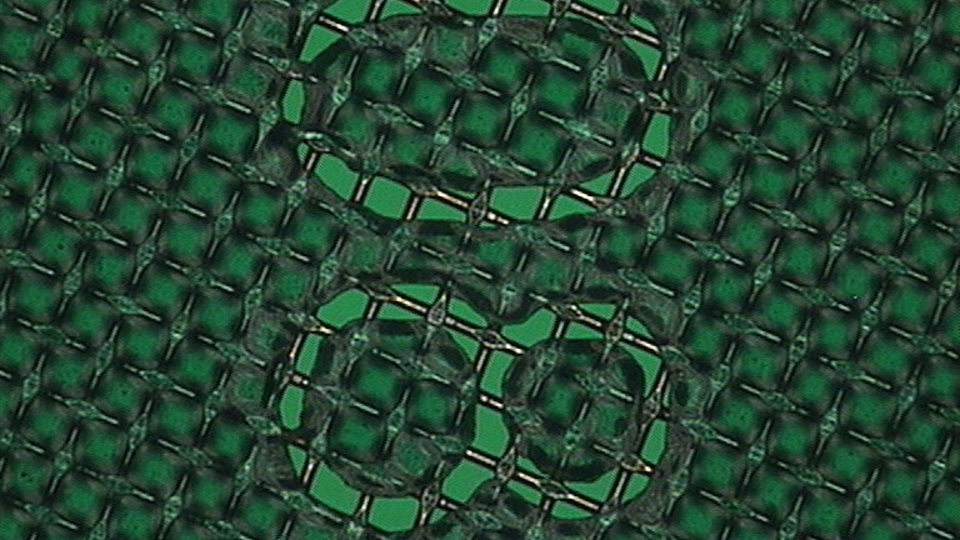

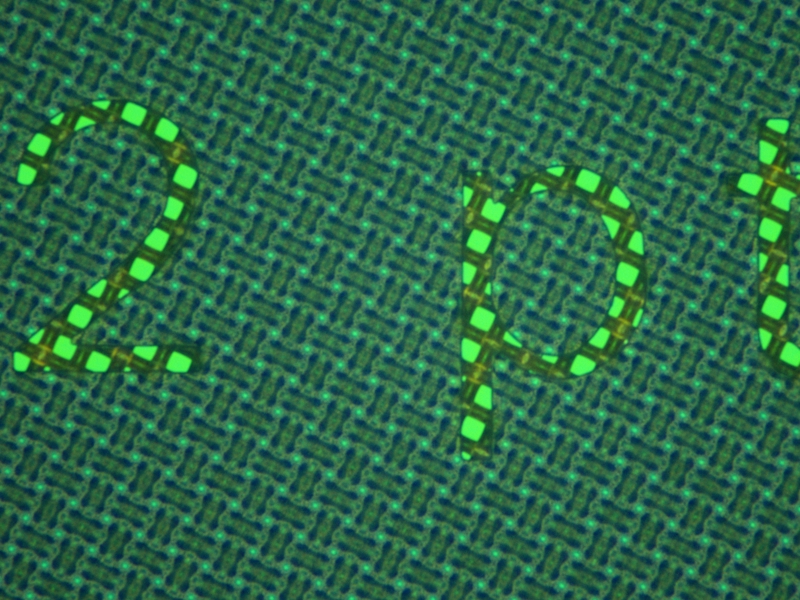

SAATIgraf HSX4 on Saatilene HiLo 165.25 synthetic mesh - 2 pt type
